- 다른 기능은 뭐가 있지?
- 단일 Cell 선택 하기.
- 다중 Cell 선택을 구현합니다.
- Cell을 드래그하기 쉽게 이동할 수 있습니다.
단일 Cell 선택하기
생성한 Color들을 선택하면 Check 표시가 나게 설정해보자.

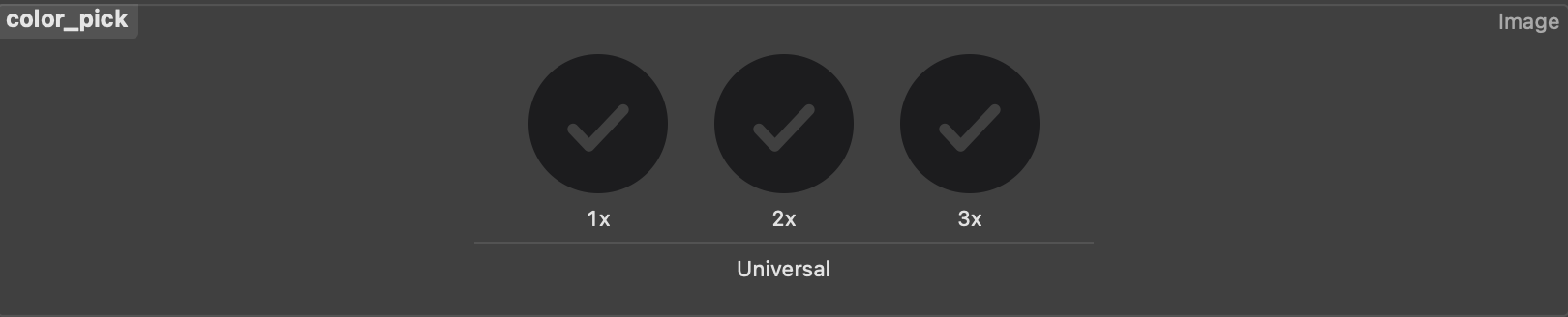

Color를 선택하면 체크가 된 원으로 바꾸기 위해 Asset에 svg 이미지를 추가했다.
ColorViewCell로 들어가 Cell에서 ImageView를 생성해준다.
이 ImageView를 통해 Color가 선택되었다면, color_pick이미지를 불러 올 것이다.
class ColorViewCell: UICollectionViewCell {
// MARK: - Properties
var colorView: UIImageView = {
let iv = UIImageView()
iv.clipsToBounds = true
return iv
}()
}
UICollectionViewCell에서 isSelected라는 속성을 사용해 Cell이 선택 되었는지 확인 할 수 잇다.
isSelected값이 변경 될 때마다 colorview를 업데이트 시켜야 되기때문에 isSelected를 override해준다.
class ColorViewCell: UICollectionViewCell {
override var isSelected: Bool {
didSet {
// configureUI()
}
}
}
configureUI 메서드에 아래와 같이 추가해주자.
// ColorCode가 변경되면, Cell의 background 색을 변경함
func configureUI() {
guard let colorCode = colorCode else {
return
}
// 선택한 경우
if isSelected {
colorView.image = UIImage(named: "color_pick")?.withRenderingMode(.alwaysTemplate)
colorView.tintColor = UIColor(rgb: colorCode)
colorView.backgroundColor = .white
}
// 선택하지 않은 경우
else {
colorView.tintColor = .clear
colorView.backgroundColor = UIColor(rgb: colorCode)
}
}
원리는 ColorView가 선택되었다면, 체크 표시 이미지를 불러와주고 이미지의 색깔을 colorCode(Color Hex Code)에게서 전달 받은 값으로 바꿔주면 된다.
반대로 선택되지 않았다면 체크 표시 이미지의 색을 투명하게 바꿔주고, 뒷 배경을을 colorCode색으로 바꿔준다.
기본 선택 위치 설정
처음 어떤 cell을 선택 할 지 지정 할 수가 있다.
ColorViewController에서 아래와 같이 viewDidAppear을 추가해줍니다.
override func viewDidAppear(_ animated: Bool) {
super.viewDidAppear(animated)
// 기본 선택 위치 설정
let selectedIndexPath = IndexPath(row: 0, section: 0)
collectionView.selectItem(at: selectedIndexPath, animated: true, scrollPosition: .left)
}
여러개 선택하기
ColorViewController viewDidLoad에서 allowMulitpleSelection을 true로 변경 해줍니다.
override func viewDidLoad() {
super.viewDidLoad()
collectionView.register(ColorViewCell.self, forCellWithReuseIdentifier: reuseIdentifier)
// 여러개 선택하기
collectionView.allowsMultipleSelection = true
}
전체 소스
//
// ColorViewCell.swift
// CollectionViewExample
//
// Created by Taehoon Kim on 2022/02/16.
//
import UIKit
class ColorViewCell: UICollectionViewCell {
// MARK: - Properties
var colorView: UIImageView = {
let iv = UIImageView()
iv.clipsToBounds = true
return iv
}()
// Controller에게서 전달 받을 colorCode
var colorCode: Int? {
didSet {
configureUI()
}
}
// MARK: - Lifecycle
override init(frame: CGRect) {
super.init(frame: frame)
colorView.frame = CGRect(x: 0, y: 0, width: frame.width, height: frame.height)
colorView.layer.cornerRadius = frame.width / 2
addSubview(colorView)
}
required init?(coder: NSCoder) {
fatalError("init(coder:) has not been implemented")
}
// Helper
override var isSelected: Bool {
didSet {
configureUI()
}
}
// ColorCode가 변경되면, Cell의 background 색을 변경함
func configureUI() {
guard let colorCode = colorCode else {
return
}
// 선택한 경우
if isSelected {
colorView.image = UIImage(named: "color_pick")?.withRenderingMode(.alwaysTemplate)
colorView.tintColor = UIColor(rgb: colorCode)
colorView.backgroundColor = .white
}
// 선택하지 않은 경우
else {
colorView.tintColor = .clear
colorView.backgroundColor = UIColor(rgb: colorCode)
}
}
}
//
// ViewController.swift
// CollectionViewExample
//
// Created by Taehoon Kim on 2022/02/16.
//
import UIKit
private let reuseIdentifier = "ColorViewCell"
class ColorViewController: UICollectionViewController {
/// 보여줄 데이터
let colorHexCodes = [0x000000,0xff3b30,0x007aff,0xff9500,0x4cd964,
0xEDCFA9,0xE89F72,0xFF935E,0xD5724A,0xAA4B31,
0xFCD1D1,0xECE2E,0xD3E0DC,0xAEE1E1,0xD9D7F1,
0x93B5C6,0xBCEBFD,0xC9CCD5,0xE4D8DC,0xFFE3E3,
0x535353,0x424242,0x323232,0x06405FA,0x032D44,
0xFEFFDE,0xDDFFBC,0x91C788,0x53744E,0x5D272D,
0x493535,0x6C5050,0xEED6C4,0xFFF3E4,0xFCF0C8,
0xC6D57F,0xD57F7F,0xA2CDCD,0xF4DFB3,0x3E2257]
override func viewDidLoad() {
super.viewDidLoad()
collectionView.register(ColorViewCell.self, forCellWithReuseIdentifier: reuseIdentifier)
// 여러개 선택하기
collectionView.allowsMultipleSelection = true
}
override func viewDidAppear(_ animated: Bool) {
super.viewDidAppear(animated)
// 기본 선택 위치 설정
let selectedIndexPath = IndexPath(row: 0, section: 0)
collectionView.selectItem(at: selectedIndexPath, animated: true, scrollPosition: .left)
}
}
// MARK: UICollectionViewDataSource
extension ColorViewController {
/// cell 데이터가 몇 개인가
override func collectionView(_ collectionView: UICollectionView, numberOfItemsInSection section: Int) -> Int {
return colorHexCodes.count
}
/// 각 Cell에 필요한 데이터를 설정한다.
override func collectionView(_ collectionView: UICollectionView, cellForItemAt indexPath: IndexPath) -> UICollectionViewCell {
let cell = collectionView.dequeueReusableCell(withReuseIdentifier: reuseIdentifier, for: indexPath) as! ColorViewCell
cell.colorCode = colorHexCodes[indexPath.row]
return cell
}
}
// MARK: UICollectionViewDelegate
extension ColorViewController {
/// cell 데이터가 몇 개인가
override func collectionView(_ collectionView: UICollectionView, didSelectItemAt indexPath: IndexPath) {
}
}
// MARK: - UIColor
/// Hex Code Color을 사용하게 하는 함수
// let color = UIColor(rgb: 0xFFFFFF)
// let color = UIColor(rgb: 0xFFFFFF).withAlphaComponent(1.0)
// let color2 = UIColor(argb: 0xFFFFFFFF)
extension UIColor {
convenience init(red: Int, green: Int, blue: Int, a: Int = 0xFF) {
self.init(
red: CGFloat(red) / 255.0,
green: CGFloat(green) / 255.0,
blue: CGFloat(blue) / 255.0,
alpha: CGFloat(a) / 255.0
)
}
convenience init(rgb: Int) {
self.init(
red:(rgb >> 16) & 0xFF,
green:(rgb >> 8) & 0xFF,
blue: rgb & 0xFF
)
}
// let's suppose alpha is the first component (ARGB)
convenience init(argb: Int) {
self.init(
red: (argb >> 16) & 0xFF,
green: (argb >> 8) & 0xFF,
blue: argb & 0xFF,
a: (argb >> 24) & 0xFF
)
}
}

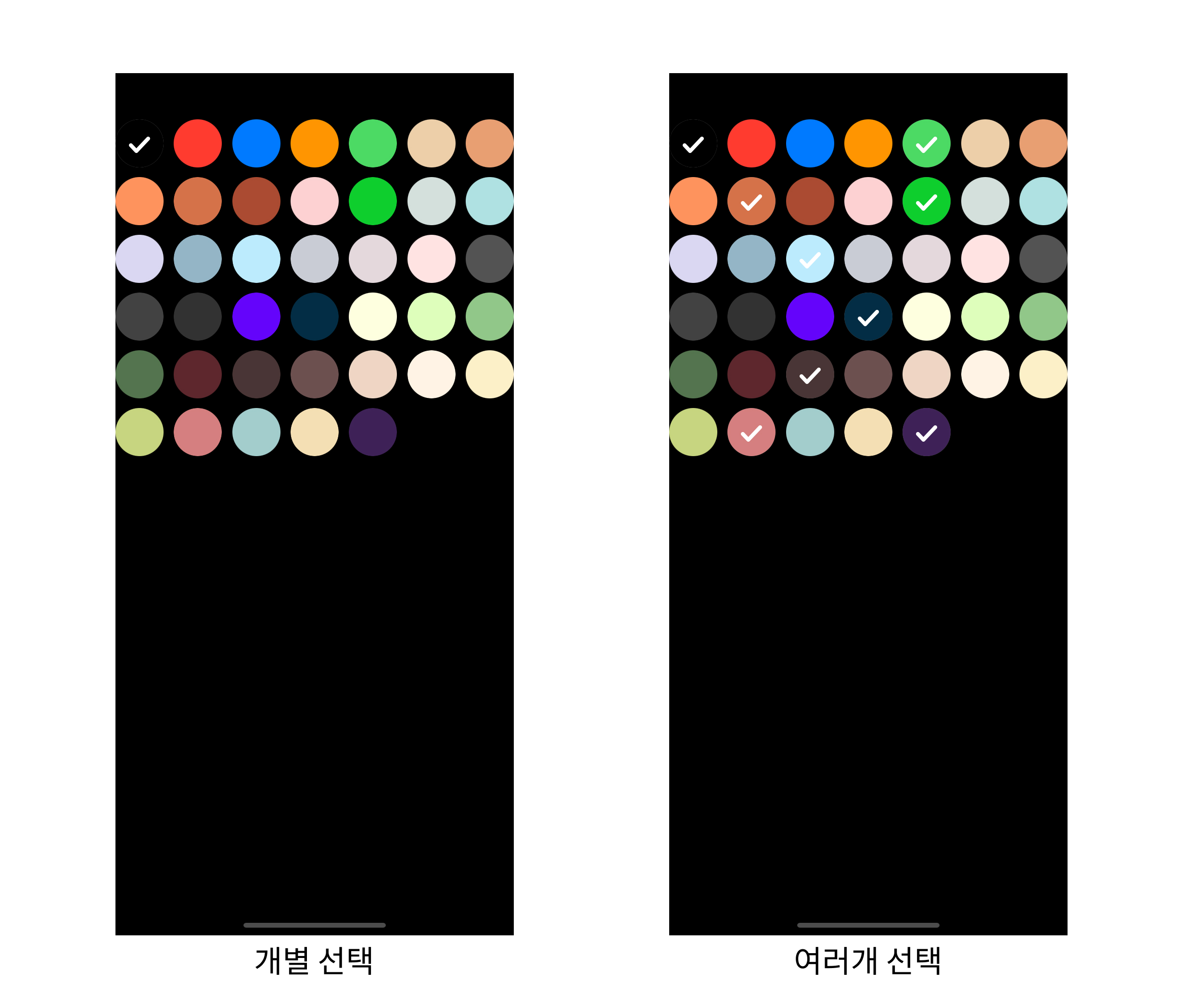

실행화면
